A simple layout

Let’s build a simple layout for the current website that makes it look more like a proper website. The simple layout will have four boxes:

Figure 6.6 - A simple website layout

Figure 6.6   A simple website layout

The container box is simply a box that holds everything else and will be a fixed width of 960 pixels (there will be no specification of height; it will simply be as high as it needs to be).

  • 960 px is a fairly standard width for a website and has been for quite some time; given the advent of larger screen sizes, this is now increasing and for the proper website we will use 1276 px (see § 3.3.1). For our purposes 960 will do.

The main content will hold the headings, logo and lorum ipsum paragraphs, the side area we haven’t done yet and the author and other information will hold Henry’s picture and his name.

The boxes are constructed using the <div>…</div> element. The first box we need is the container, and since this holds everything on the web page it starts just after the body start tag and ends just before the body end tag:

index.html
    <body>
        <div class="container">
            <h1>My First Blog Post</h1>

            <h2>This is my first blog post</h2>
            . . .
            <p class=author-text>Henry Gledhill</p>
        </div>
    </body>
</html>
Code 6.4.1   index.html (adding container) a

All the website content that we have written so far is now contained inside the <div> element. This has absolutely no effect on the website in the browser; this is because we have not yet defined the class .container, so let’s do just that:

style.css
.author-text{
    font-size: 22px;
}

.container {
    width: 960px;
    background-color: #D8D8D8;
}
Code 6.4.2   style.css (adding container) a

The background colour is just to help us identify the container area (we’ll take it out at the end).

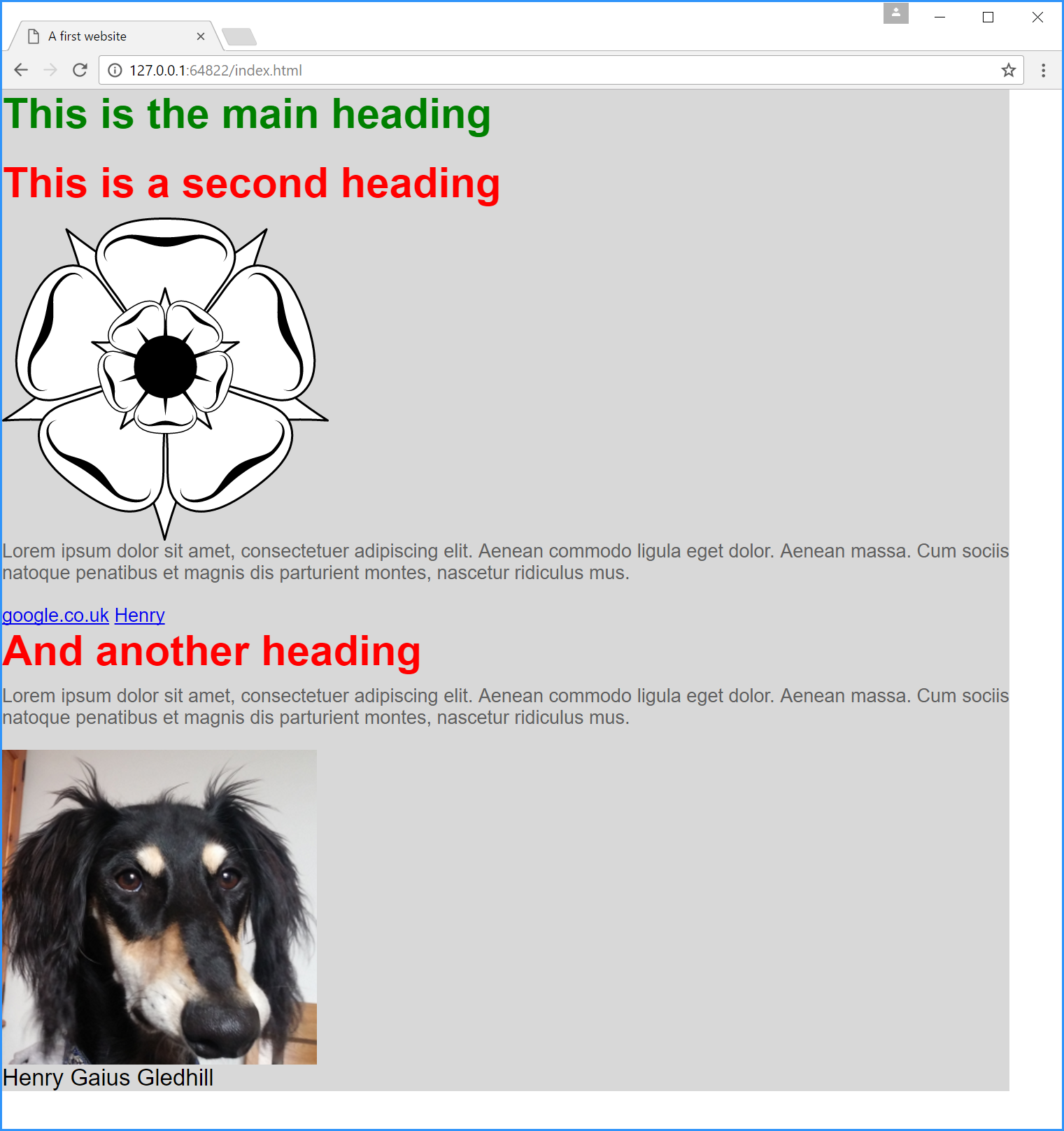

Figure 6.7 - Web page in a box

Figure 6.7   Web page in a box

Ok, now we’ve got a website that doesn’t fill the width of the browser window (unless the browser window is less than 960 px).

It’s not quite what we want, it would be better if the page was in the centre of the browser window (at the minute it’s over to the left). So let’s add a bit more code:

style.css
.container {
    width: 960px;
    margin-left: auto;
    margin-right:auto;
    background-color: #D8D8D8;
}
Code 6.4.3   style.css (Centred web page) a

This gives an even white gap down either side:

Figure 6.8 - Centred web page

Figure 6.8   Centred web page

Setting the left and right margins to auto will keep the container box centred in the web browser window (irrespective of how wide the browser becomes).

Now we’ll add the three internal boxes:

The main-area div needs to start just after the container div and ends just before the Henry image.

Add the side-area div just after this, add the “THIS IS THE SIDE AREA” text and then the closing div (we’ll come back to this).

Put the author-box div around the Henry image and Henry Gaius Gledhill paragraph. The whole this should look like this:

index.html
<!DOCTYPE html>
<html>
     <head>
        <title>A first website</title>
        <link rel="stylesheet" type="text/css" href="style.css">
    </head>

    <body>
        <div class="container">
            <div class="main-area">
                <h1>This is the main heading</h1>

                <h2>This is a second heading</h2>

                <img src="logo.svg" alt="The website logo">

<p class="main-text">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus.</p>

<a href="http://www.google.co.uk" target="_blank"> google.co.uk</a>

                <a href="henry.png">Henry</a>

                <h2>And another heading</h2>

<p class="main-text">Lorem ipsum dolor sit amet, consectetuer adipiscing elit. Aenean commodo ligula eget dolor. Aenean massa. Cum sociis natoque penatibus et magnis dis parturient montes, nascetur ridiculus mus.</p>
            </div>

            <div class="side-area">
                THIS IS THE SIDE AREA
            </div>


            <div class="author-area">
                <img src="henry.png" alt="Henry the saluki">

                <p class="author-text">Henry Gaius Gledhill</p>
            </div>
        </div>
    </body>
</html>
Code 6.4.4   index.html (adding interior boxes) a

And now the CSS; add the following classes to the end of the file:

style.css
.main-area {
    background-color: #96AFCF;
}
.side-area {
    background-color: #9DBB61;
}
.author-area {
    background-color: #C05046;
}
Code 6.4.5   style.css (adding interior boxes) a

Again, the colours just let us see where each box is on the screen

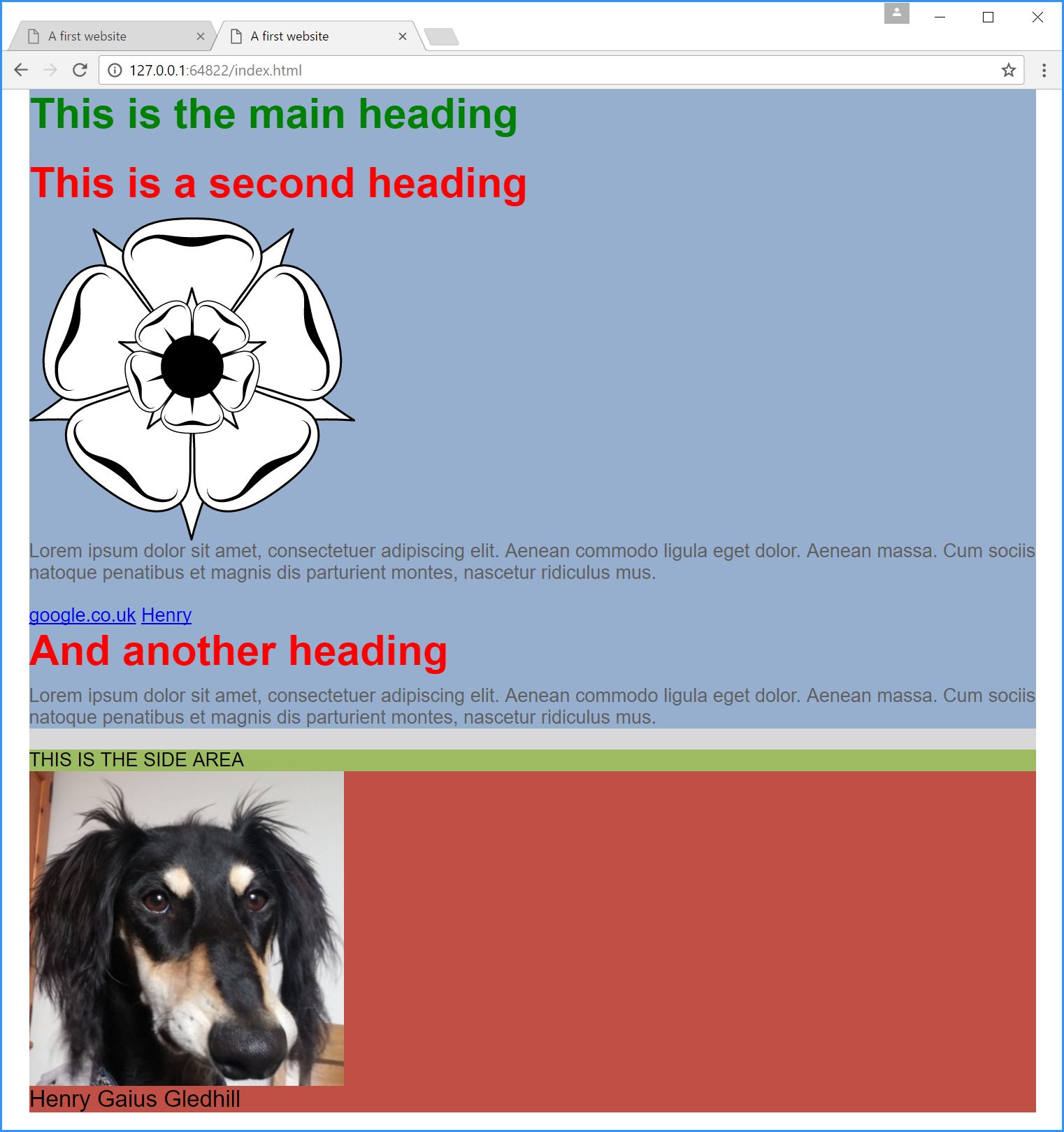

Figure 6.9 - All four boxes (div areas)

Figure 6.9   All four boxes (div areas)

Right, well we’ve got all the boxes, just not in the right place.

The first thing to do is to make the blue and green boxes the correct width; in Figure 6.6 the blue box is 75% of the width and the green box is 25% of the width. This is an easy change to make; the width property sets the width of a box:

style.css
.main-area {
    background-color: #96AFCF;
    width: 75%;
}
.side-area {
    background-color: #9DBB61;
    width: 25%;
}
Code 6.4.6   style.css (set box width) a

And we get:

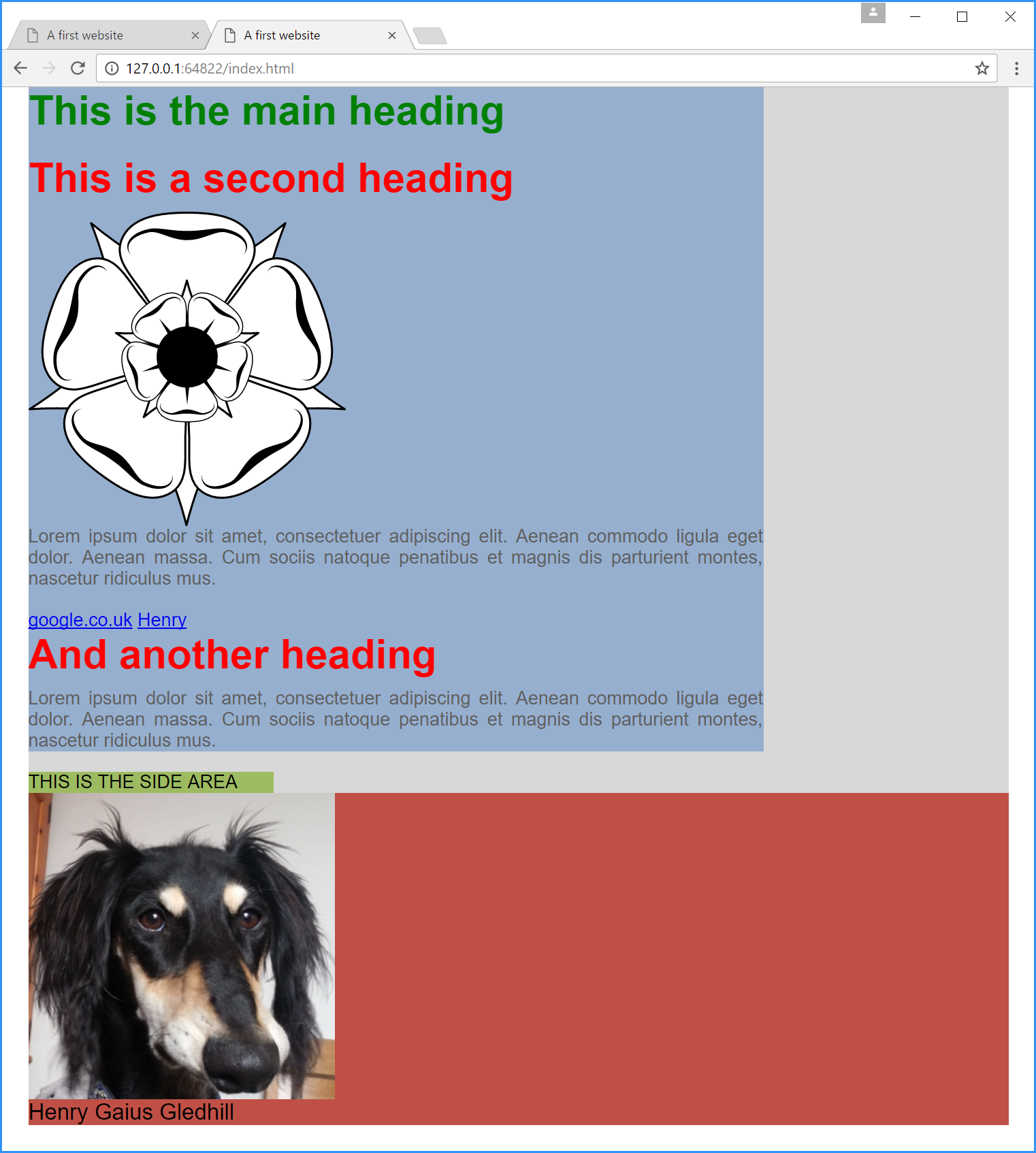

Figure 6.10 - Box widths

Figure 6.10   Box widths

Yep, it’s going to be a long day.

Next: the reason the boxes are still on top of each other is because we haven’t told them to behave in another way (remember, block elements always start on a new line). The command we are looking for is the float command, in this case we will make both the blue and green boxes float to the left hand side of the main (grey) container

  • The blue and green boxes together add up to 100% of the width of the container box, so it doesn’t matter that both the blue and green float left, the green box could float right, it would still fill the available space
style.css
.main-area {
    background-color: #96AFCF;
    width: 75%;
    float: left;
}
.side-area {
    background-color: #9DBB61;
    width: 25%;
    float: left;
}
Code 6.4.7   style.css (with float) a

Bet that fixes it.

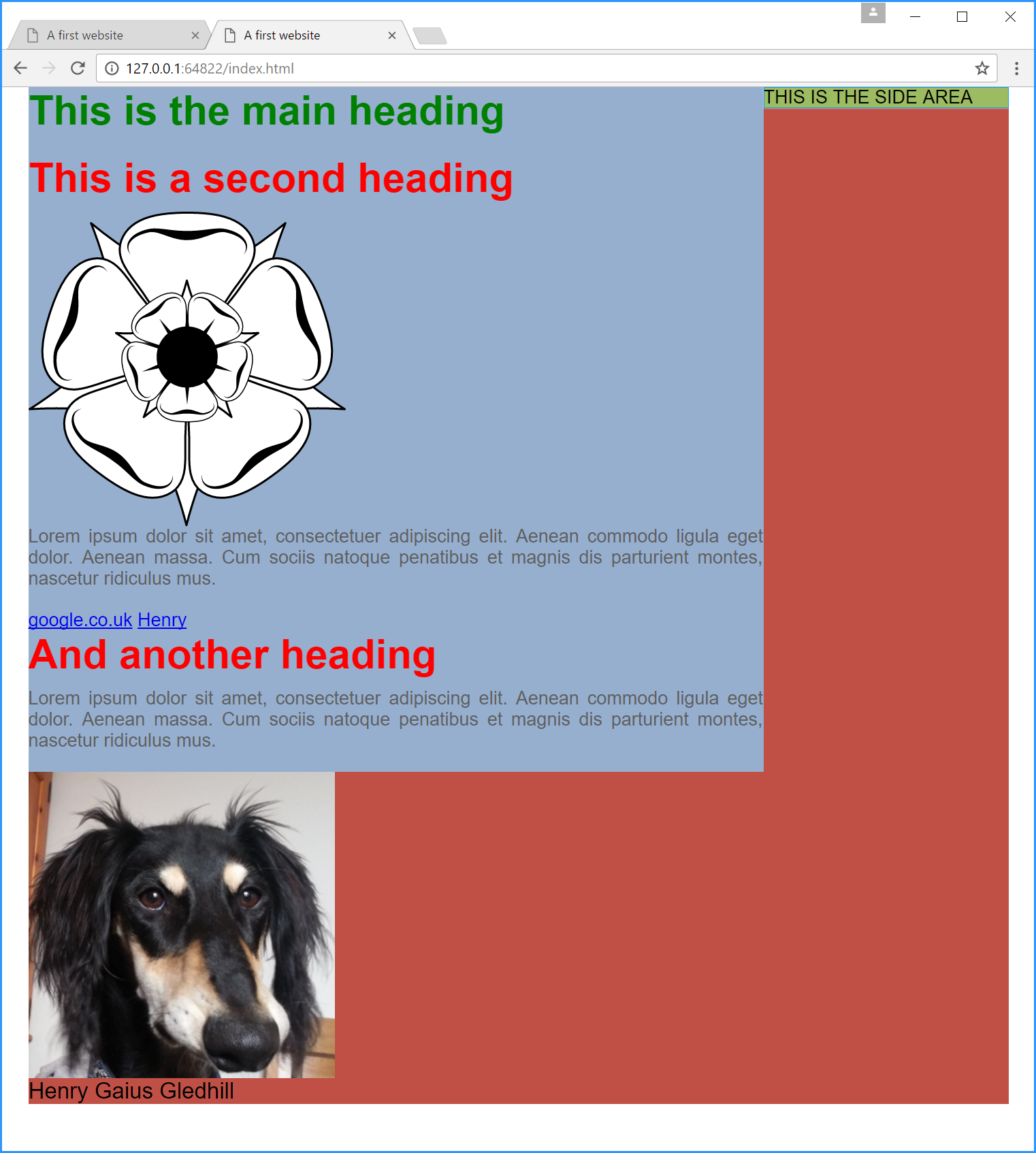

Figure 6.11 - Box with float

Figure 6.11   Box with float

Well, not so much. The blue and green boxes have done the right thing. The red box is all over the place.

This is a common problem with CSS, the float instruction is a bit like the genie: once you’ve used it it’s hard to put it back in the bottle.

To get round this we use a clever bit of jiggery-pokery (that to be honest I’m not sure I fully understand). We use the clearfix hack:

6.4.1

The clearfix hack

The clearfix hack or clearfix method, or just clearfix is a clever bit of CSS code that forces floating elements to behave themselves. It’s a CSS class and looks like this:

.clearfix:after{
    content: "";
    display: table;
    clear: both;
}

Now there are a few new things here. The first is the :after in the clearfix class selector. The :after is a pseudo element that allows content to be inserted into an HTML page directly from the CSS (that is without it needing to be in the HTML).

If we added the following code to the .main-area class, then the text “THIS IS CSS TEXT” would appear after the last Lorem ipsum paragraph (this is just an example, if you try it, delete it again afterwards).

.main-area {
    background-color: #96AFCF;
    width: 75%;
    float: left;
}
.main-area:after{
    content: "THIS IS CSS TEXT"
}

The content property simply contains a text string that is to be displayed after everything else in the class. So in the clearfix class we are adding an empty string to the end of any element that uses this class.

The next thing is the display: table declaration. This forces a table element (we look at tables in § xxx) to be created. Now when a table is created it always forces a new block region to start on a new line†1 . The last part is the clear property. The clear property is used to clear floats (it puts them back in the bottle), it can have the values left, right and both. Here we use both, we want to clear any floats that exits. It’s this last declaration that will stop the red box filling the space under the green box (the other bits just make sure it works and—this is the bit I don’t fully understand—stop it screwing up the margins). Figure 6.12 and Figure 6.13 show how it works:

†1 Technically this is referred to as block formatting context (BFC) or in CSS 3 flow root. Now the important thing about this is that BFCs and floats can’t overlap so it forces boxes that do (like the author-area in our example) onto a new line.
Figure 6.12 - Uncleared floats

Figure 6.12   Uncleared floats

Figure 6.13 - Cleared floats

Figure 6.13   Cleared floats

One important thing: with the :after property in the clearfix class; there must not be a space between the colon and after or between the selector and the colon. This is true for all pseudo elements.

6.4.2

Using the clearfix hack

First create a new clearfix class (this can go at the end of the CSS file):

style.css
.author-area {
    background-color: #C05046;
}
.clearfix:after{
    content: "";
    display: table;
    clear: both;
}
Code 6.4.8   style.css (clearfix hack) a

Now we create a new empty <div> element of class clearfix after the green box:

index.html
            <div class="side-area">
                THIS IS THE SIDE AREA
            </div>

            <div class="clearfix"></div>

            <div class="author-area">
                <img src="henry.png" alt="Henry the saluki">
Code 6.4.9   index.html (add the clearfix hack) a

And finally we get what we want:

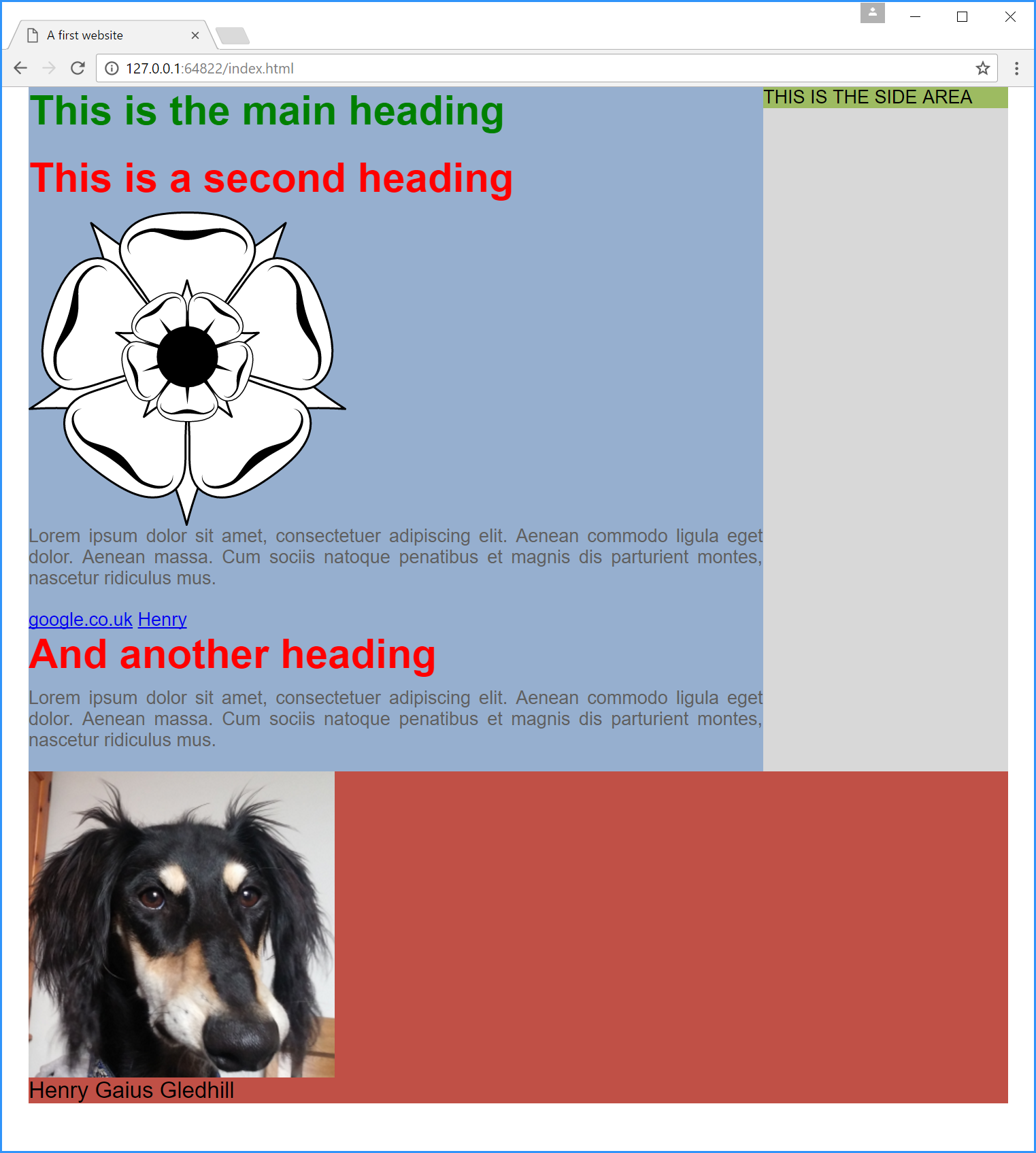

Figure 6.14 - Float with clearfix

Figure 6.14   Float with clearfix

Well wasn’t that easy?
